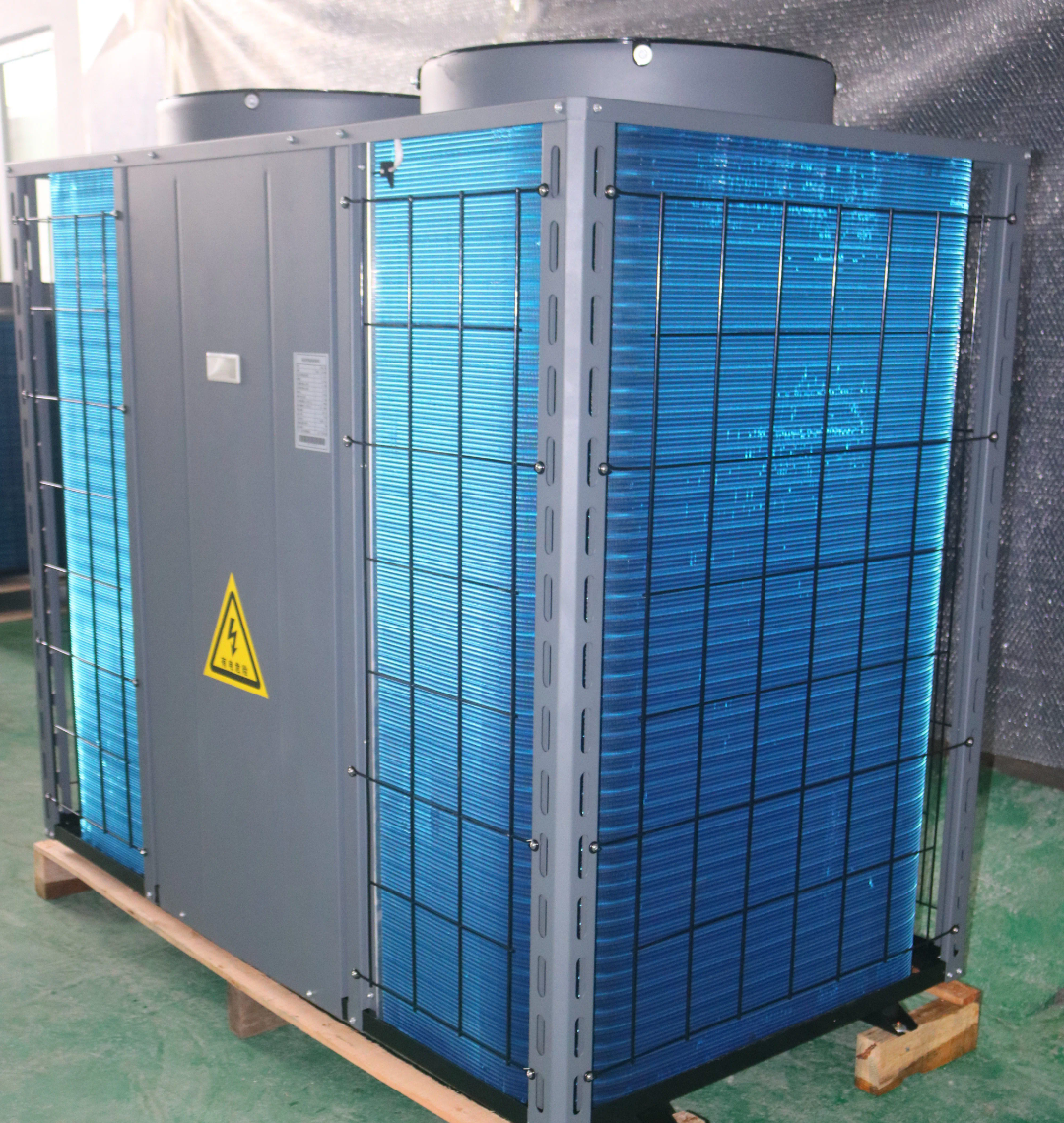

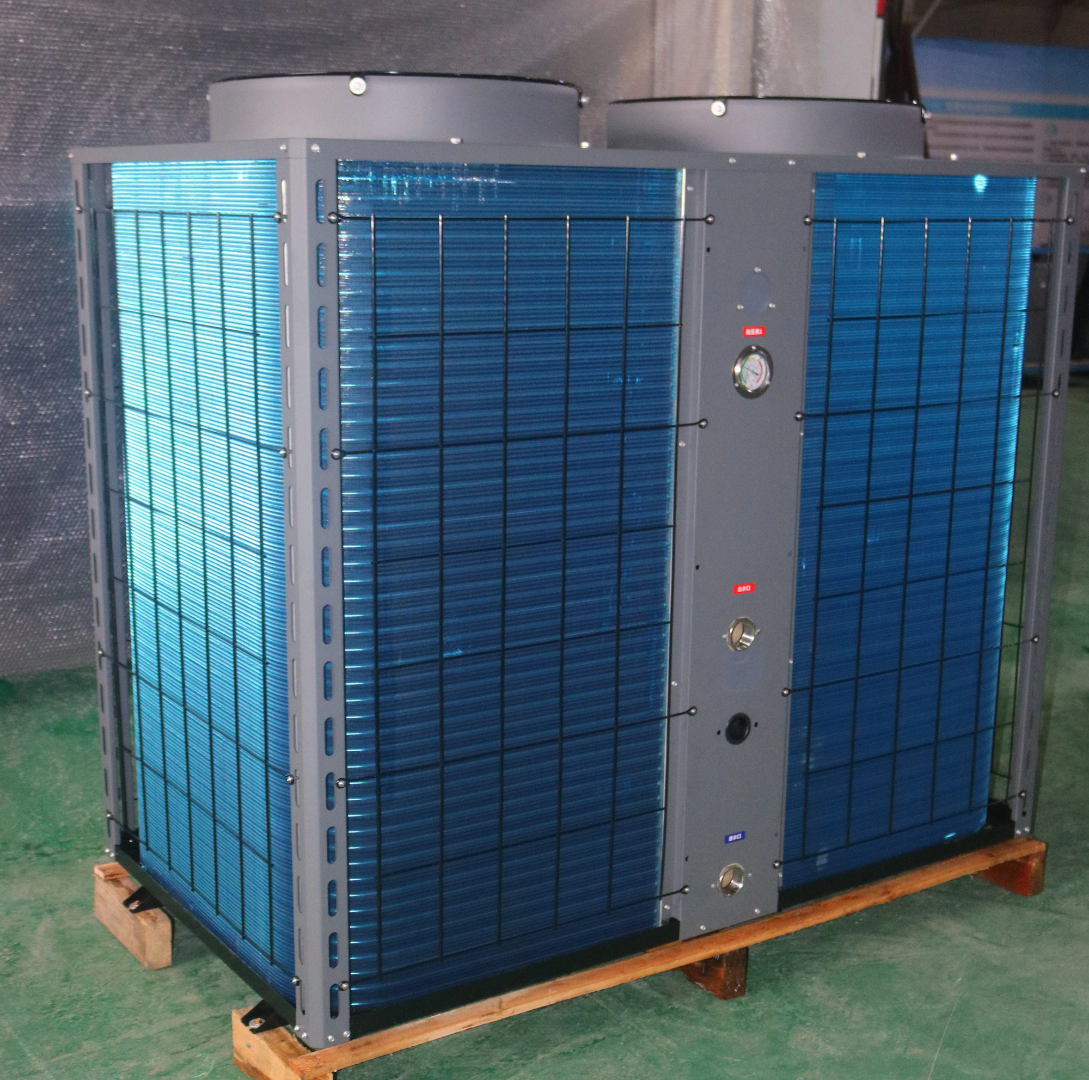

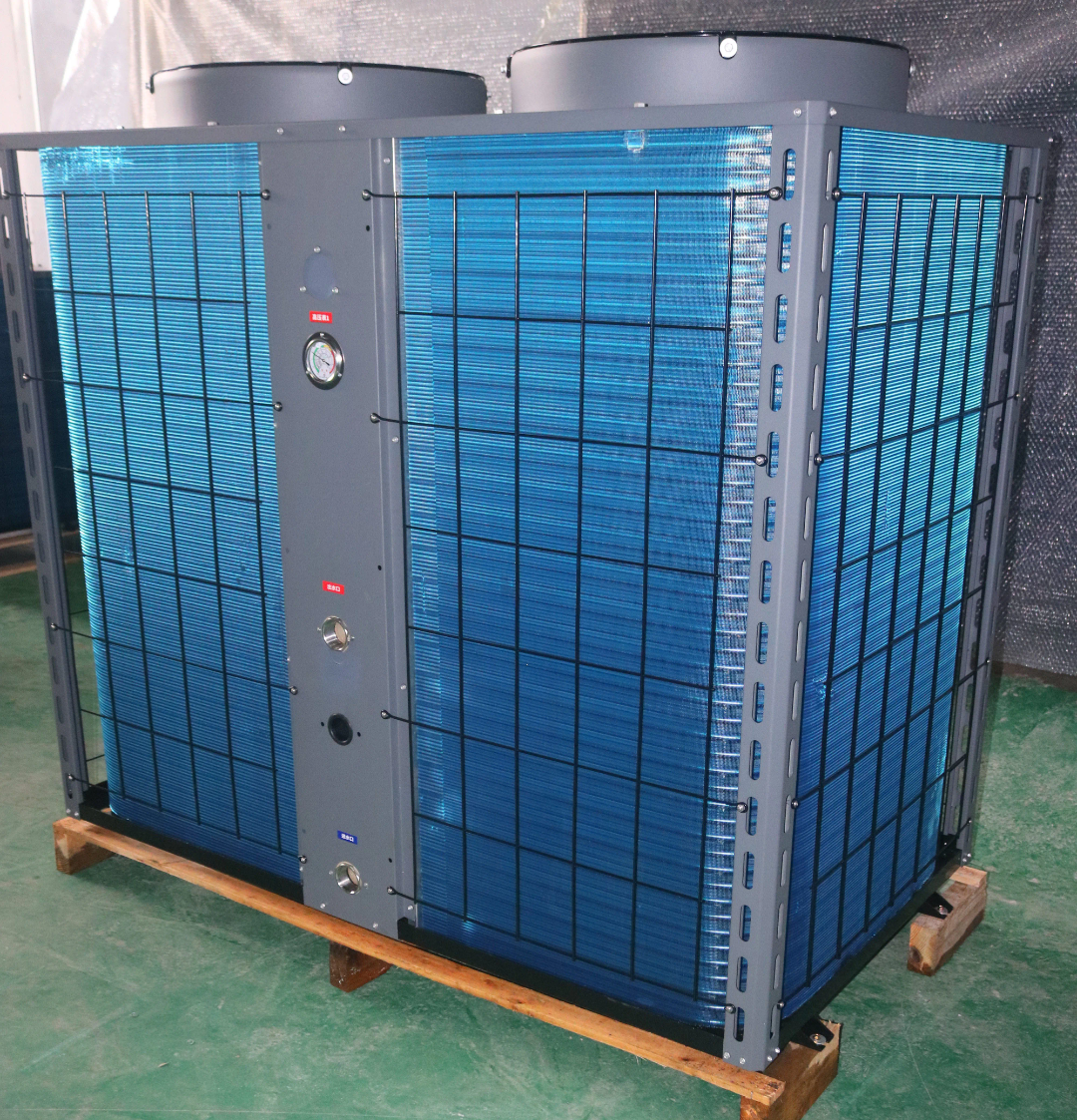

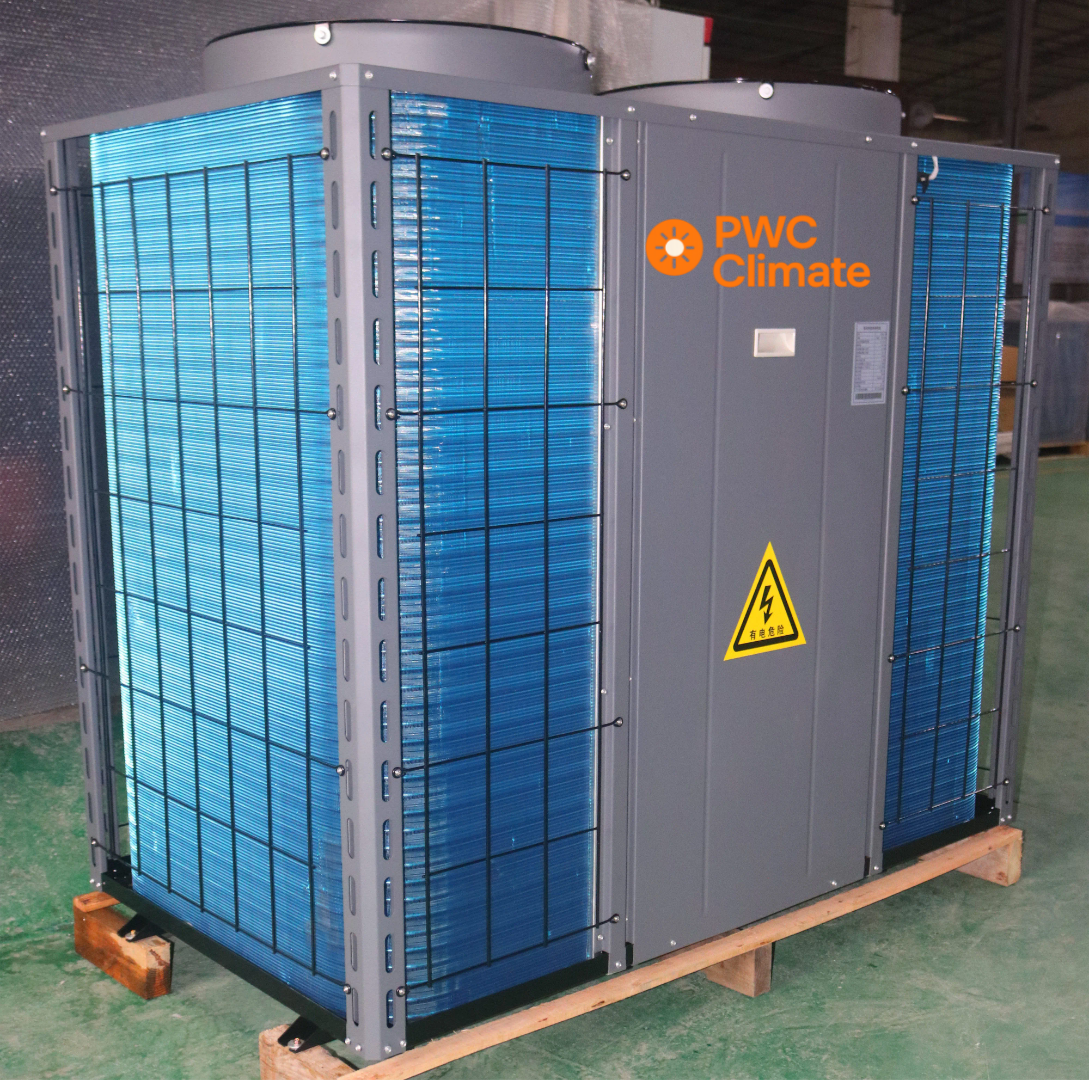

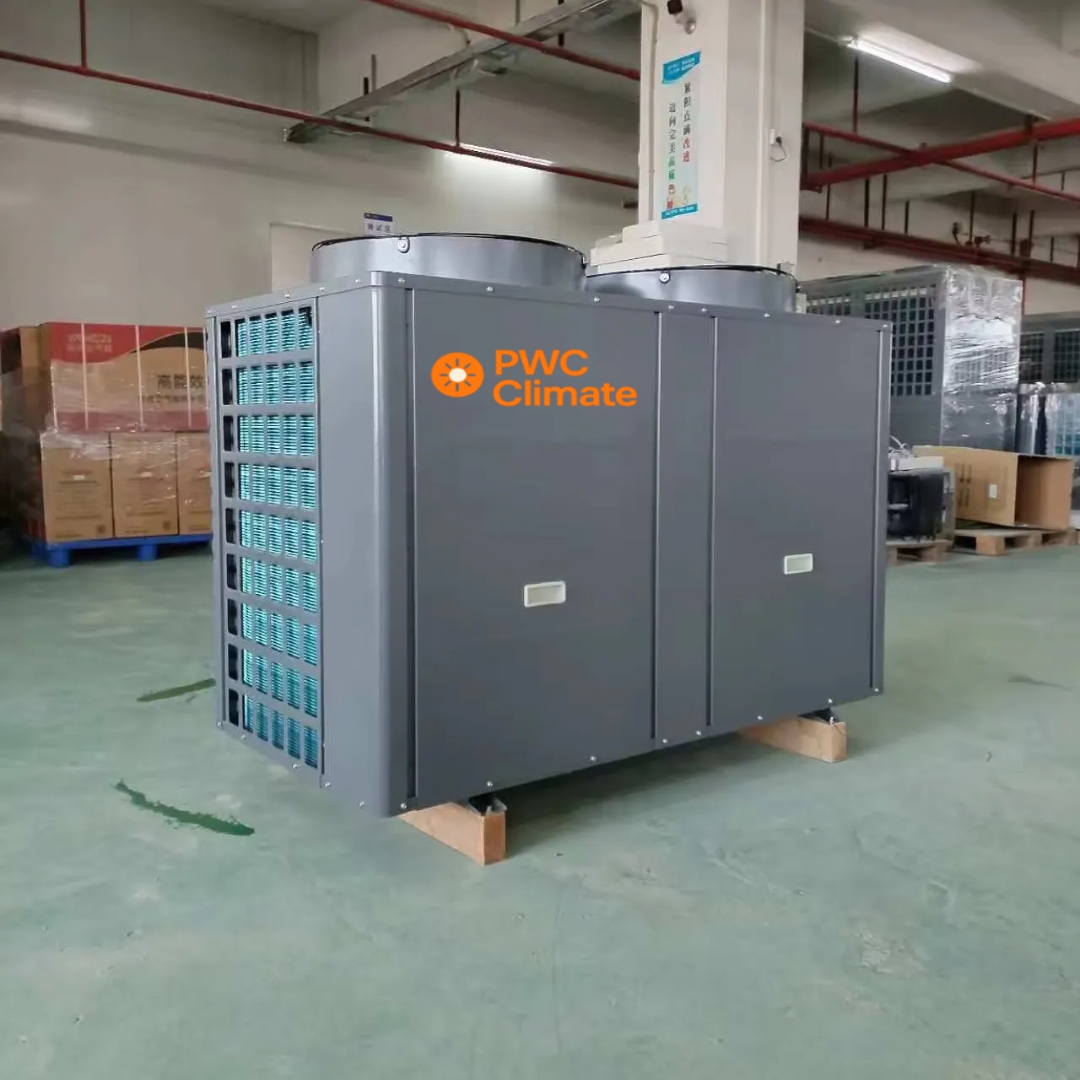

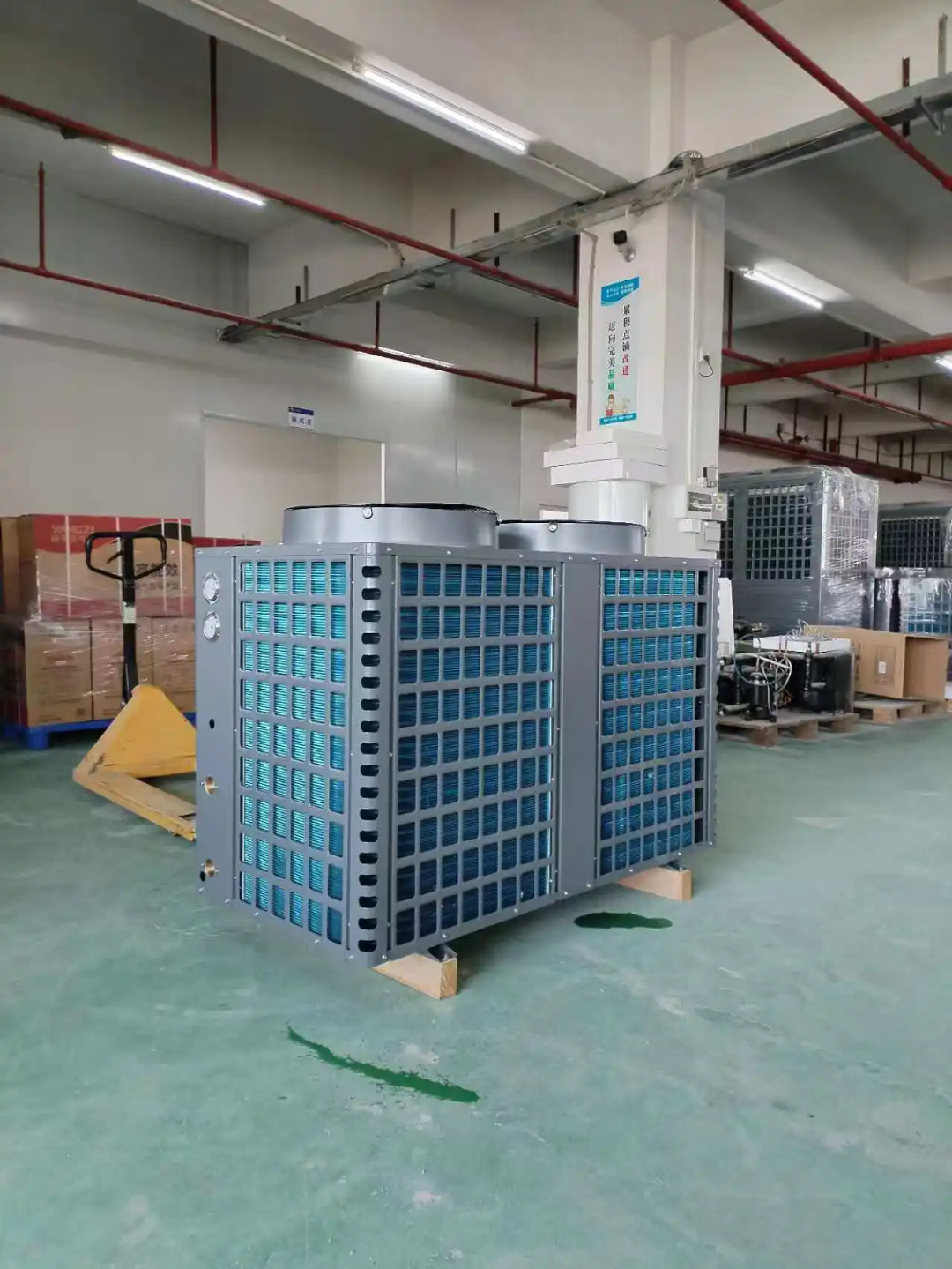

model: PW Climate PW-RS-038TA1

234

IPX4

10

4.0

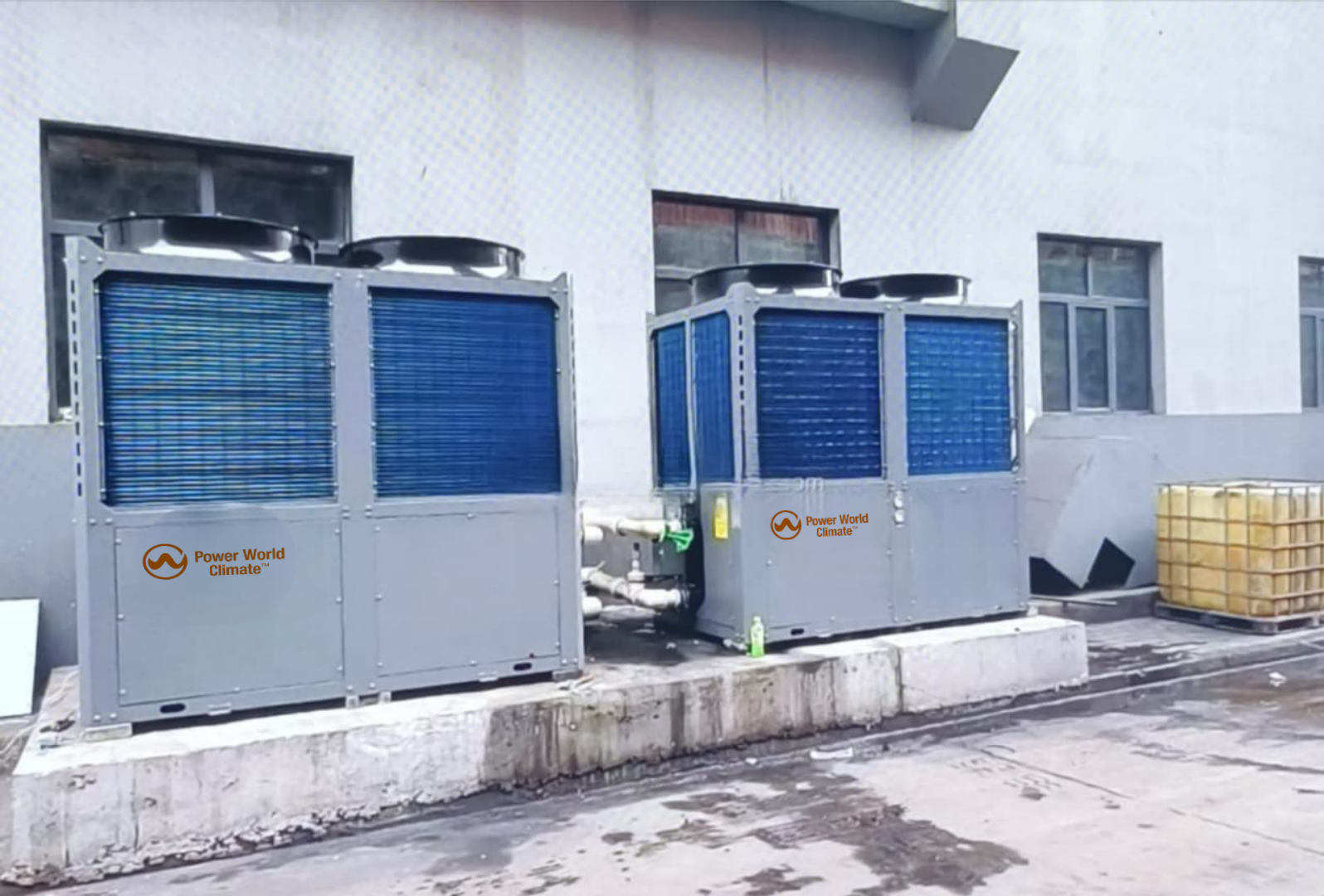

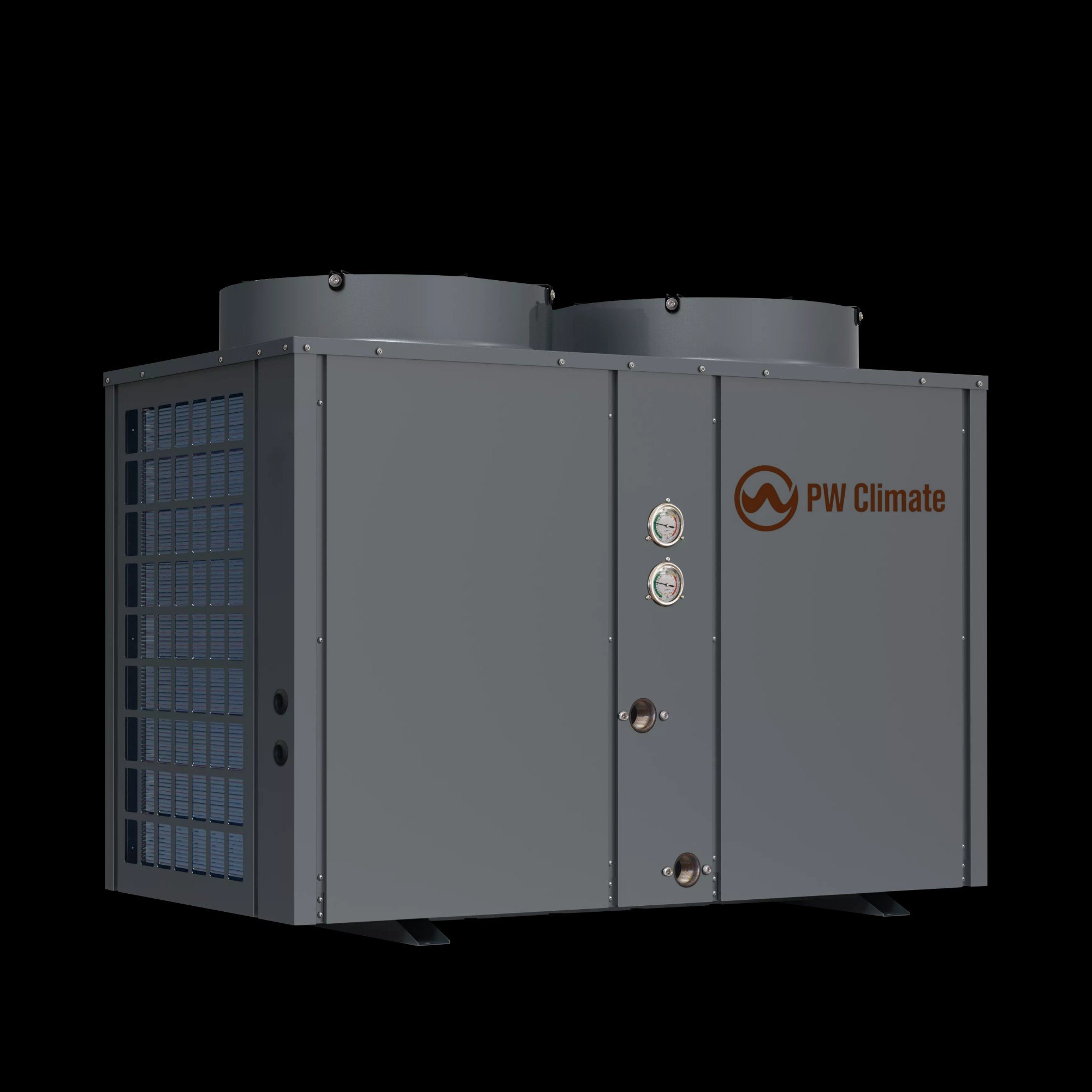

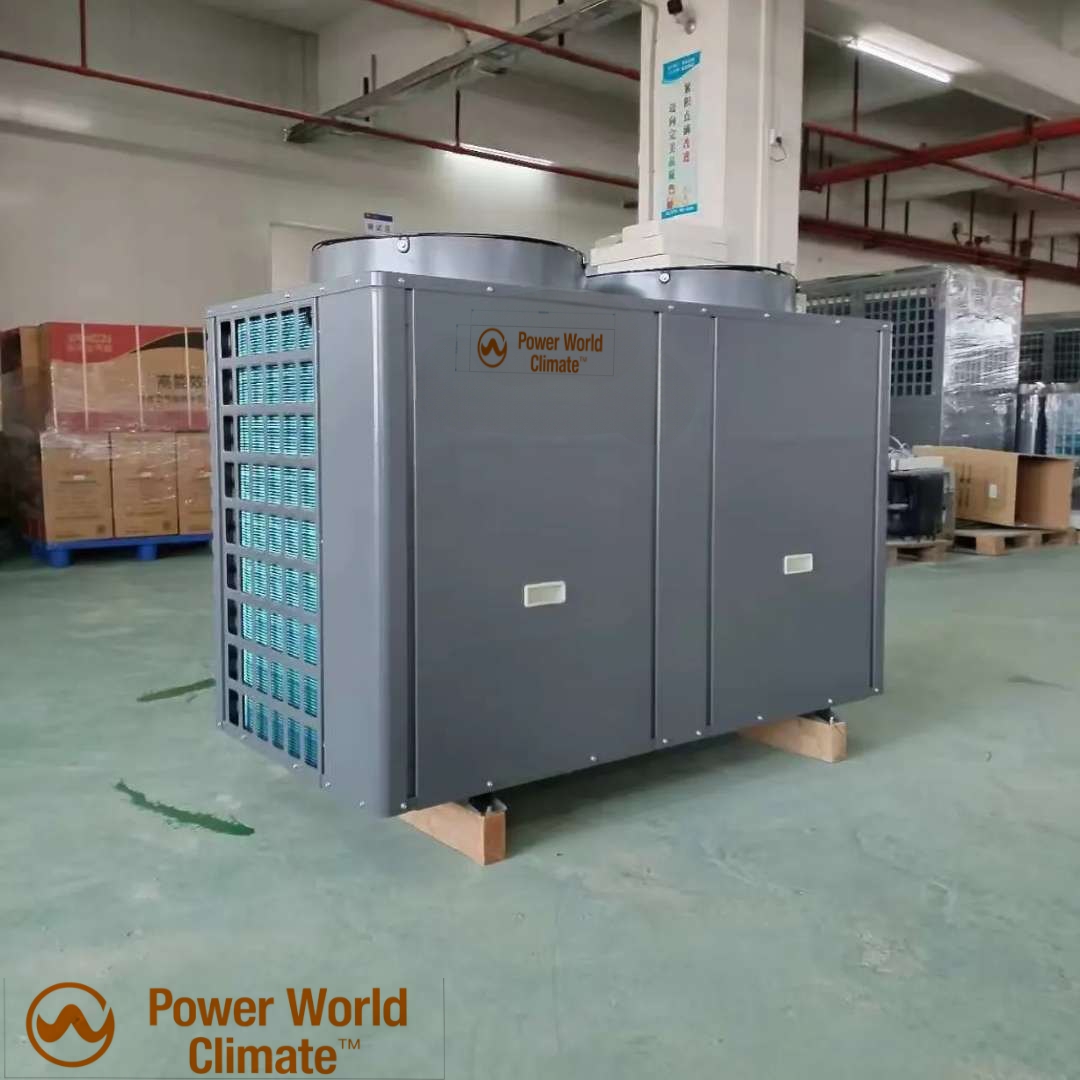

PW-RS-038TA1 – Commercial Air Source Heat Pump Water Heater 🔹 Product Overview The PW-RS-038TA1 is a high-efficiency commercial air-source heat pump designed for domestic hot water (DHW) and centralized heating systems. It uses advanced inverter technology and eco-friendly refrigerant to deliver reliable performance, even in low-temperature environments. Ideal for hotels, hospitals, apartments, hostels, schools, and industrial hot water applications. ⚙️ Technical Specifications Parameter Specification Model PW-RS-038TA1 Power Supply 380V / 3Ph / 50Hz Heating Capacity 38 kW Rated Input Power 8.75 kW COP (Coefficient of Performance) 4.3 ~ 4.4 Refrigerant R410A (Eco-friendly) Compressor Type Scroll type, high-efficiency Water Flow Volume ~8 m³/h Maximum Water Temperature 55 °C Working Ambient Temperature Range –15 °C ~ +43 °C Noise Level ≤ 60 dB(A) Water Connections DN40 (optional per design) Casing Material Galvanized steel with anti-corrosion coating Protection Grade IPX4 (Outdoor installation) Control System Intelligent digital controller with fault diagnostics Application Commercial hot water and heating system 🌍 Key Features High COP and energy-saving operation Designed for stable performance in cold climates Eco-friendly refrigerant with low GWP Compatible with buffer tanks and centralized DHW systems Intelligent temperature and pressure control Reliable operation for continuous hot water supply Recommended Applications Hotels & Resorts Hospitals & Clinics Apartment Buildings Educational Institutions Industrial Facilities Supplied by: PW Climate – Smart Heating & Cooling Solutions for Kashmir Valley First supplier of instant hot water heat pump system in Kashmir
