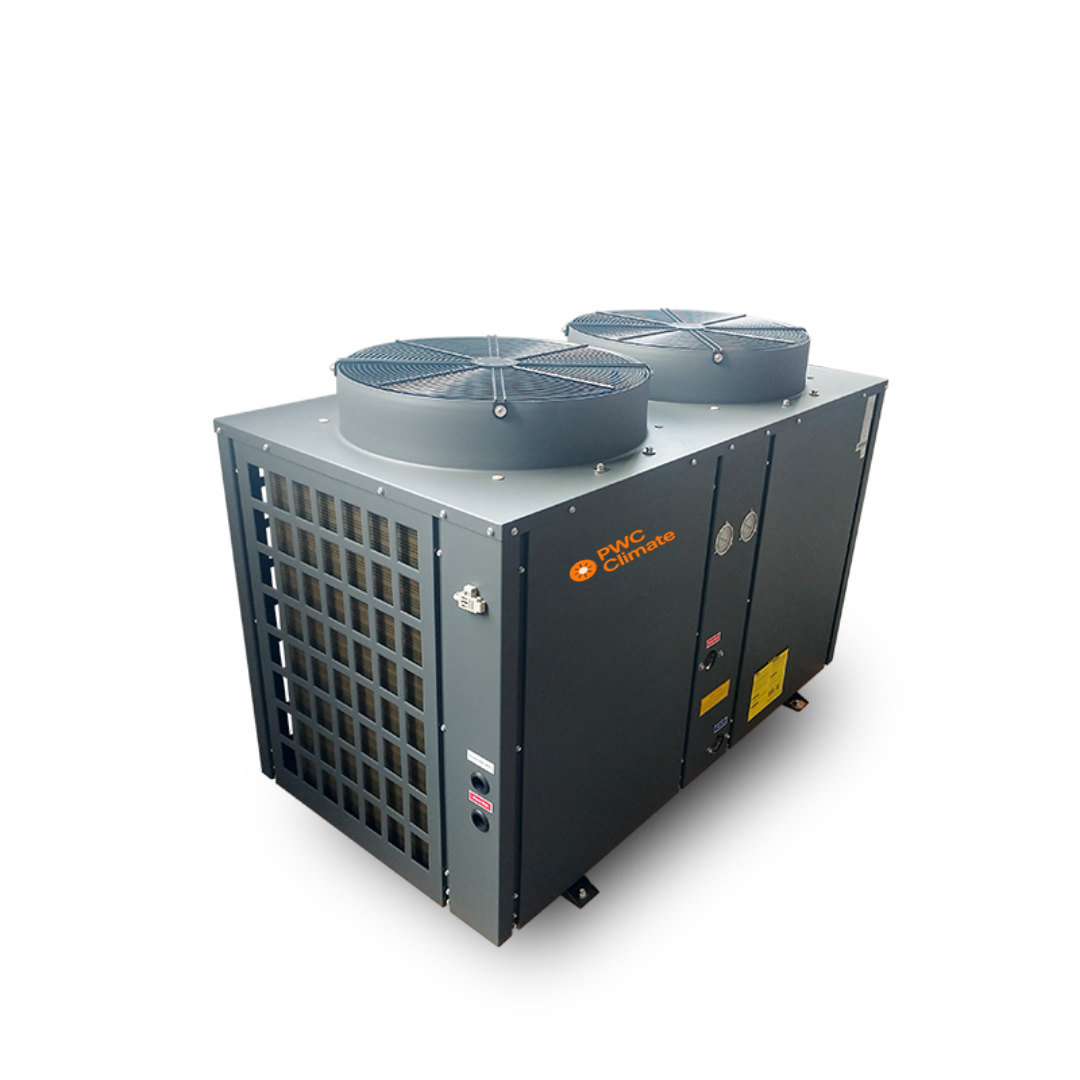

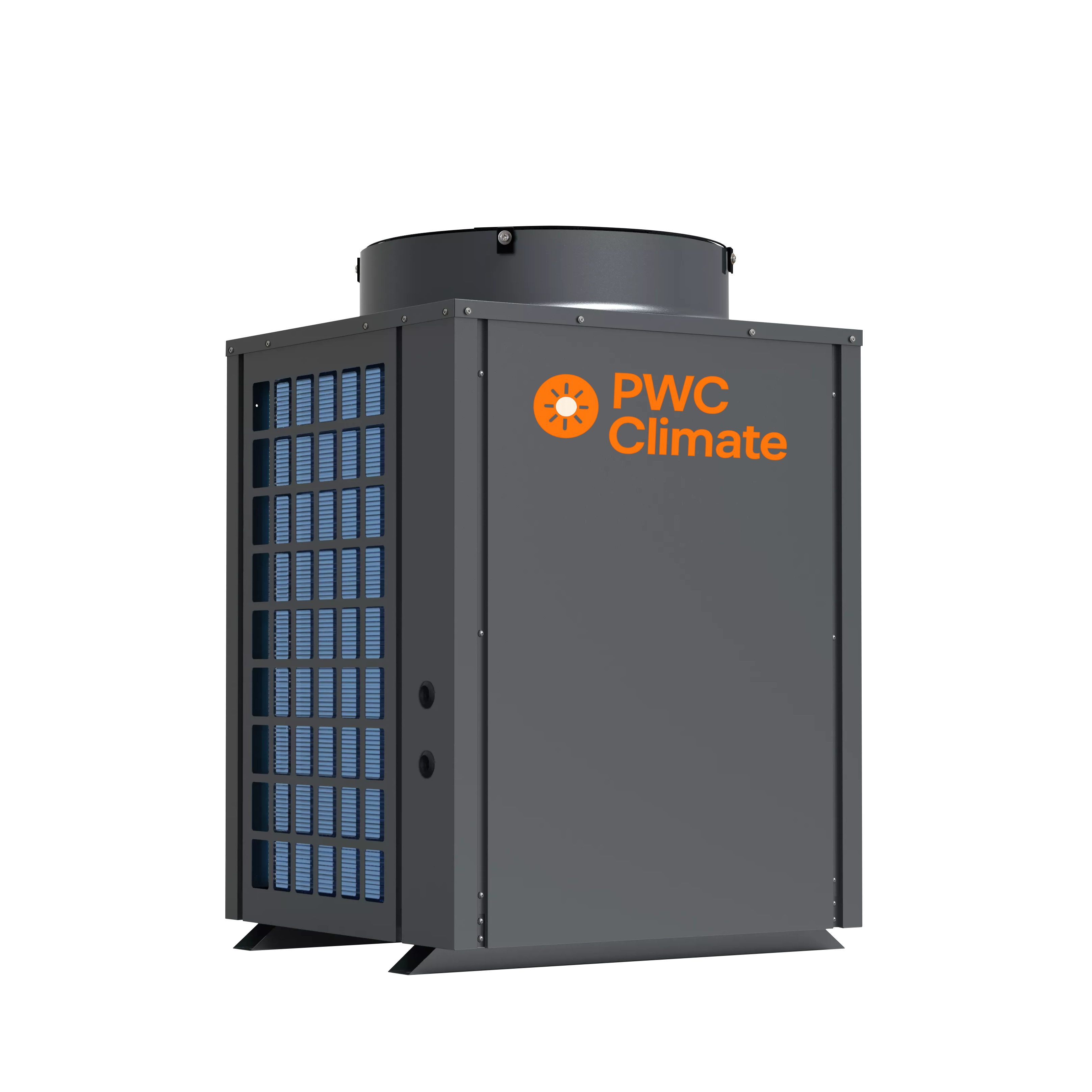

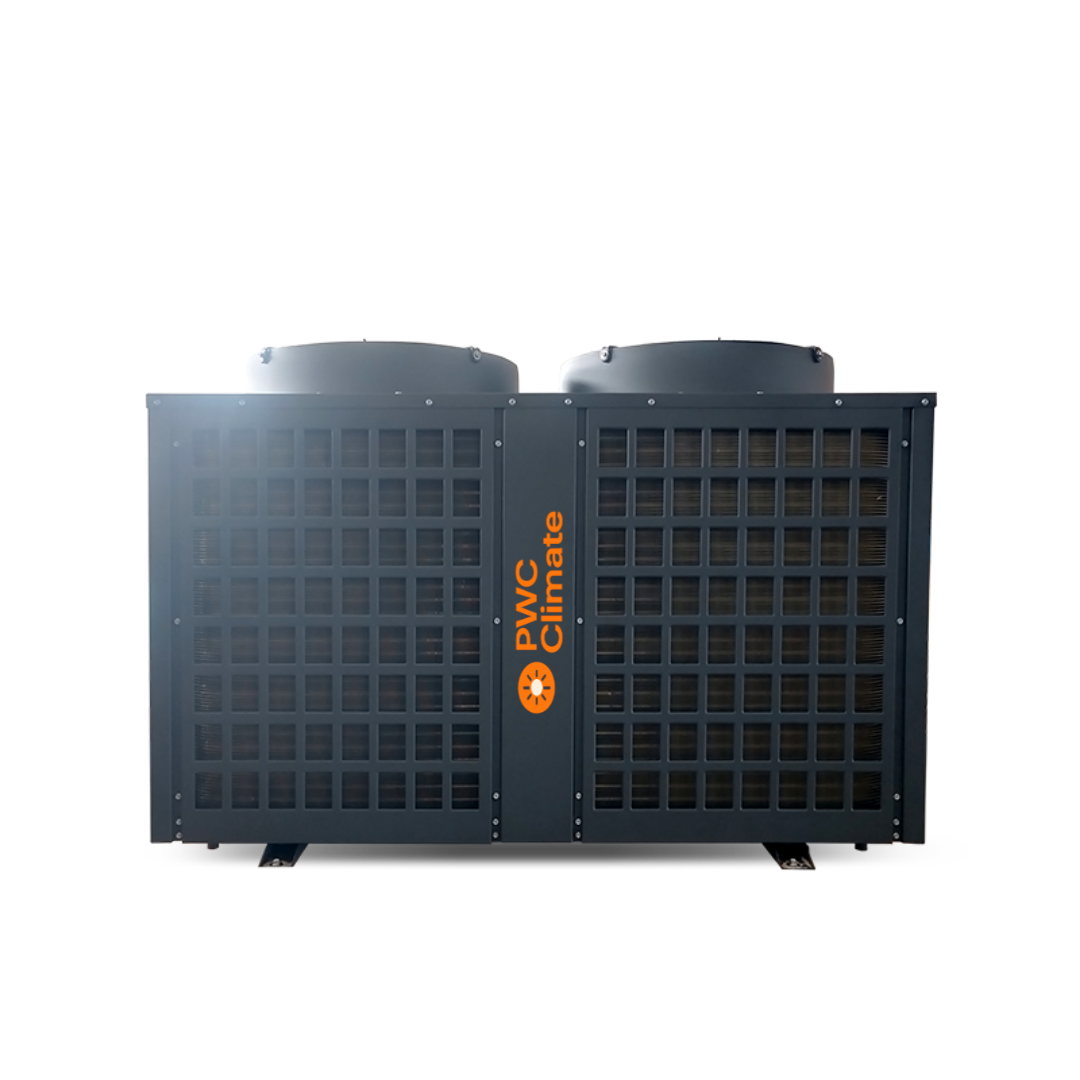

model: Power Full Heat Pump Water Heater R134 75°c

0

IPX4

5

5.0

Technical Specification – high Temperature Hot Water Heat Pump Model: PW-RS-019TB1,PW-RS-038TB1, PW-RS-200TB1 Application: Hot Water Supply Refrigerant: R134a Rated Heating Capacity: 19kw,38kw,200kw Operating Ambient Temperature: −15 °C ~ 43 °C Outlet Water Temperature: Up to 60 °C (optional 75 °C) Power Supply: 380–415 V / 3Ph / 50 Hz Compressor: High-efficiency Scroll COP: 2.5 – 4.5 (depending on conditions) Heat Exchanger: High-efficiency brazed plate Protections: High/low pressure, overload, anti-freeze, flow switch, over-temperature Controller: Smart digital controller with temperature setting and safety alarms Cabinet: Powder-coated steel, weather resistant Noise Level: ≤ 65 dB(A) Applications: Hotels, hospitals, _schools_ , villas, commercial hot water projects Technical Specification – high Temperature Hot Water Heat Pump Model: PW-RS-019TB1,PW-RS-038TB1, PW-RS-200TB1 Application: Hot Water Supply Refrigerant: R134a Rated Heating Capacity: 19kw,38kw,200kw Operating Ambient Temperature: −15 °C ~ 43 °C Outlet Water Temperature: Up to 60 °C (optional 75 °C) Power Supply: 380–415 V / 3Ph / 50 Hz Compressor: High-efficiency Scroll COP: 2.5 – 4.5 (depending on conditions) Heat Exchanger: High-efficiency brazed plate Protections: High/low pressure, overload, anti-freeze, flow switch, over-temperature Controller: Smart digital controller with temperature setting and safety alarms Cabinet: Powder-coated steel, weather resistant Noise Level: ≤ 65 dB(A) Applications: Hotels, hospitals, _schools_ , villas, commercial hot water projects Technical Specification – high Temperature Hot Water Heat Pump Model: PW-RS-019TB1,PW-RS-038TB1, PW-RS-200TB1 Application: Hot Water Supply Refrigerant: R134a Rated Heating Capacity: 19kw,38kw,200kw Operating Ambient Temperature: −15 °C ~ 43 °C Outlet Water Temperature: Up to 60 °C (optional 75 °C) Power Supply: 380–415 V / 3Ph / 50 Hz Compressor: High-efficiency Scroll COP: 2.5 – 4.5 (depending on conditions) Heat Exchanger: High-efficiency brazed plate Protections: High/low pressure, overload, anti-freeze, flow switch, over-temperature Controller: Smart digital controller with temperature setting and safety alarms Cabinet: Powder-coated steel, weather resistant Noise Level: ≤ 65 dB(A) Applications: Hotels, hospitals, _schools_ , villas, commercial hot water projects
