model: SS304 Hot Water Storage Tank

0

IPX4

2

5.0

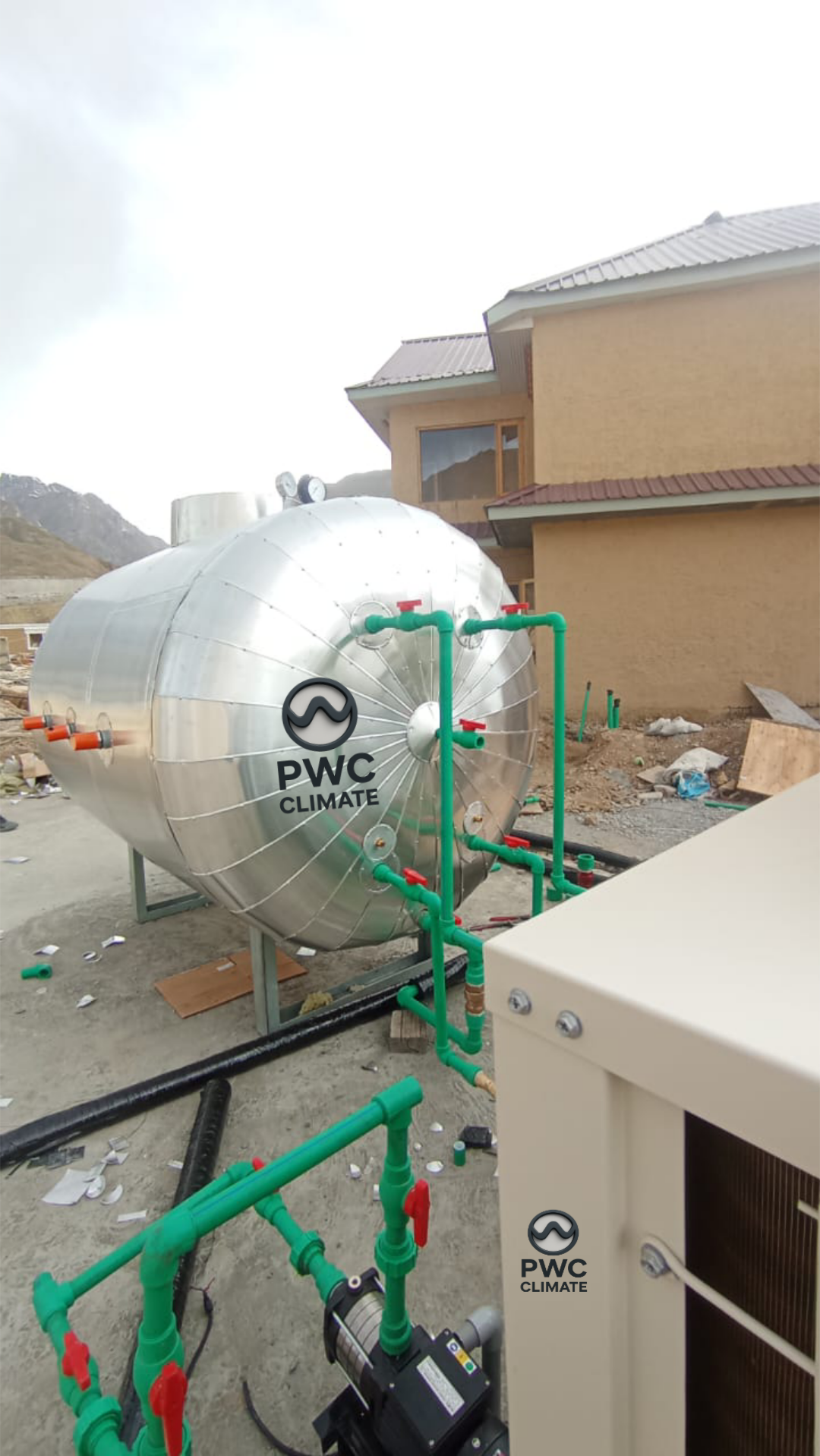

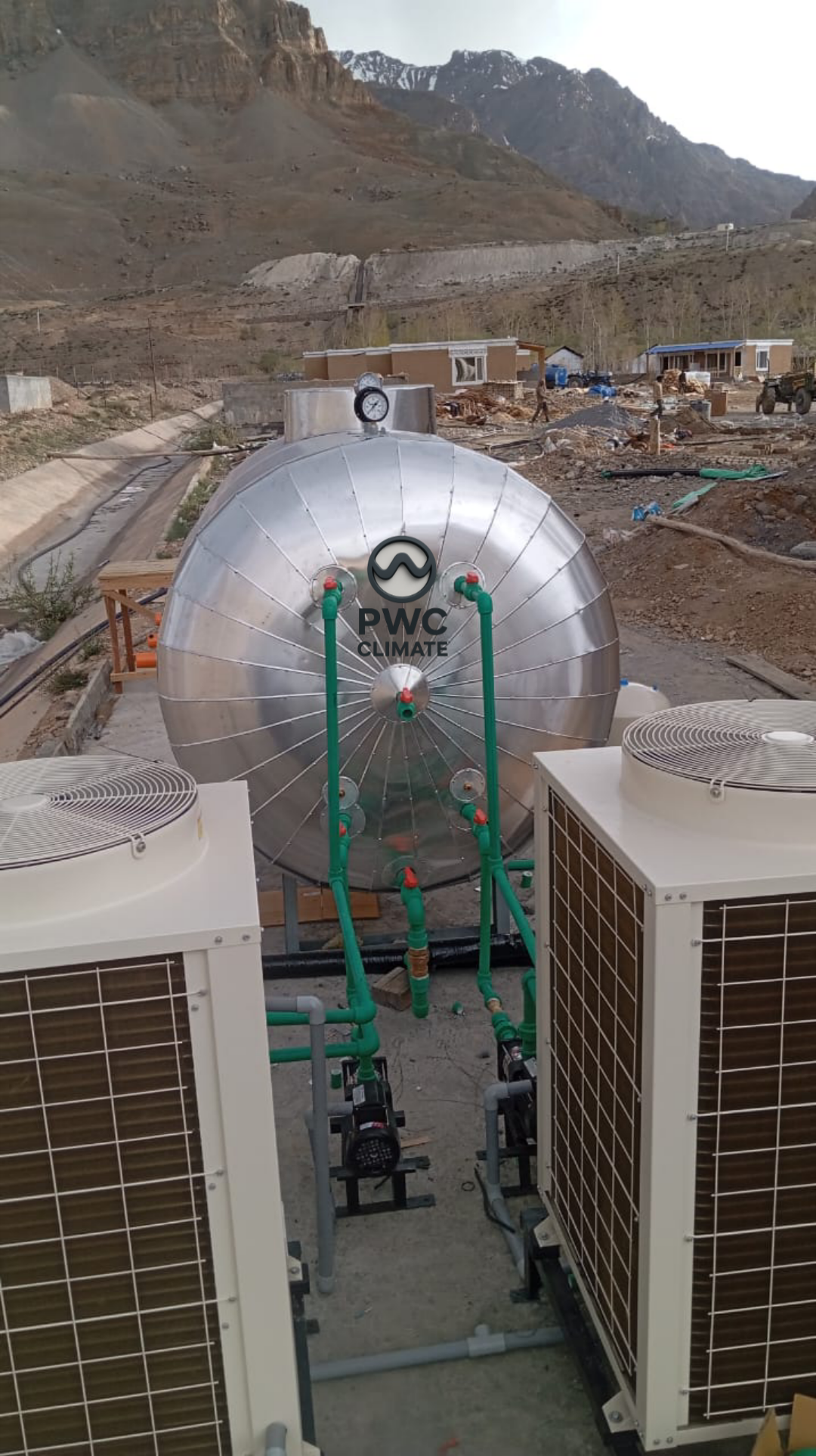

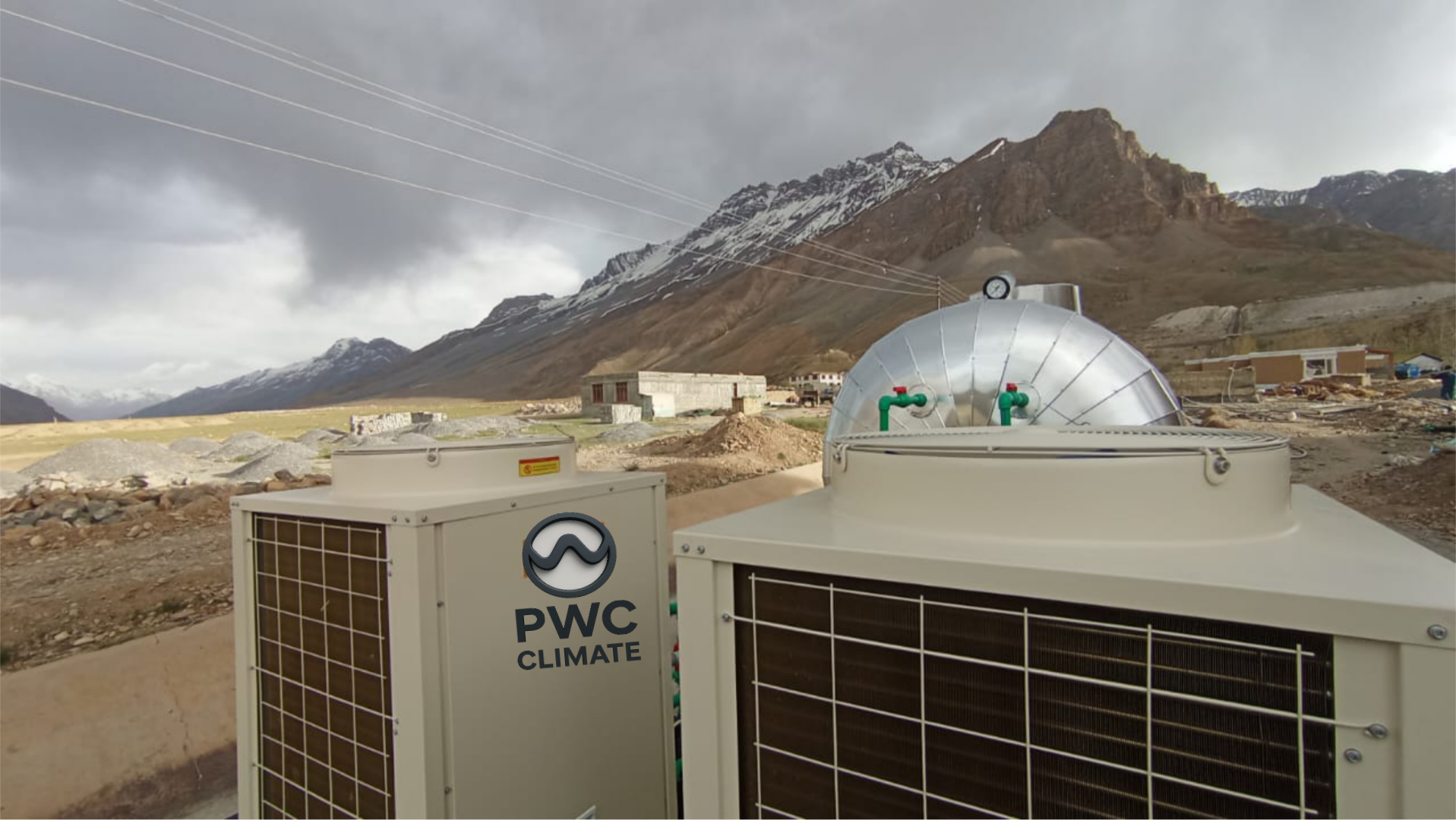

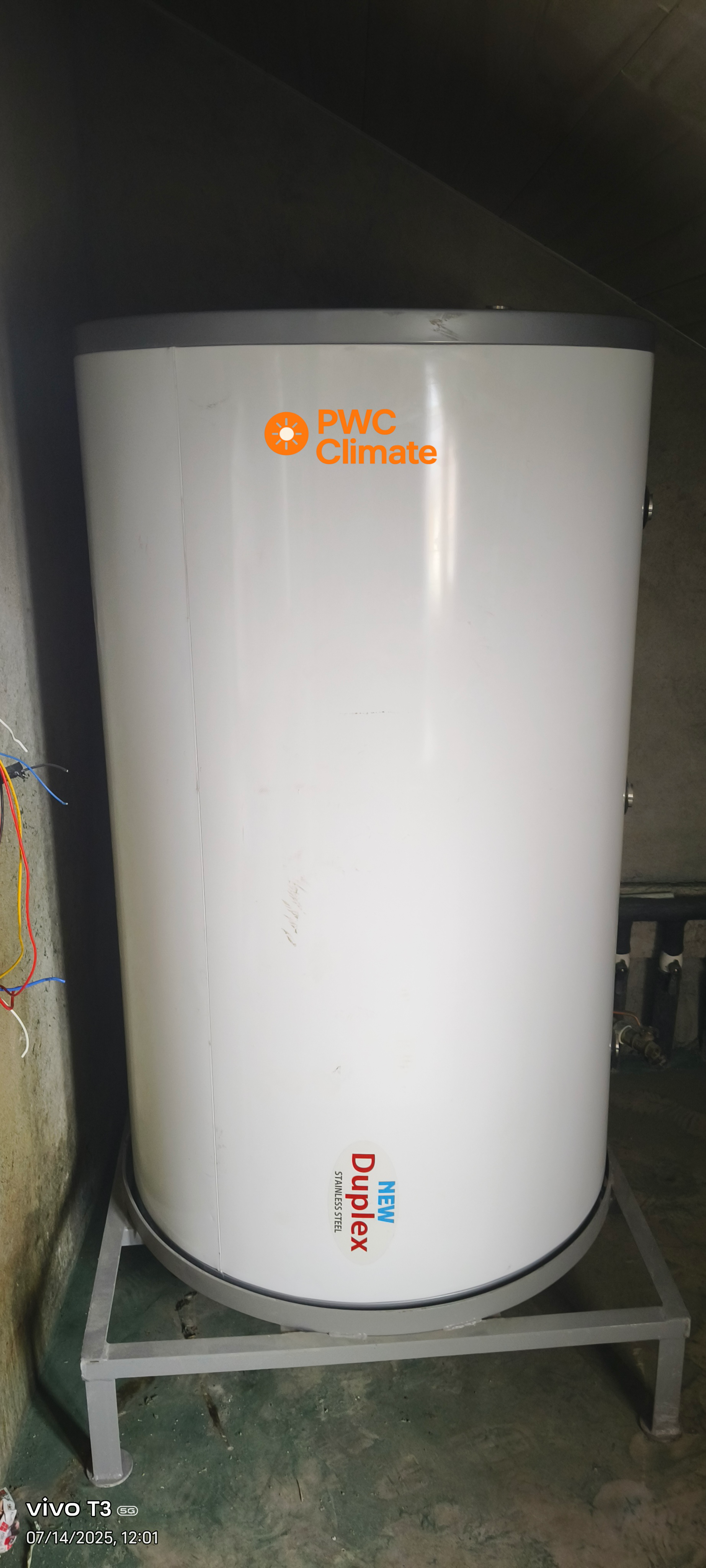

The SS304 stainless steel storage tank is designed for long service life, hygiene, and durability in hot water applications. Manufactured with food-grade SS304 material, these tanks are ideal for use in combination with heat pumps, solar water heaters, boilers, and electric heating elements. Material & Construction Tank Material: Stainless Steel SS304 (corrosion-resistant, food-grade). Shell Thickness: Typically 3–6 mm (depending on tank size). Outer Cladding: Aluminum or SS sheet with protective finish. Insulation: Rigid PUF or Rockwool, 50 mm standard (customizable). Capacity Range Available from 300 L to 10,000 L. Custom sizes available upon request. Heating Options Integrated electric heating elements (3–18 kW or as required). Compatible with heat pumps, solar, and boilers. Fittings & Accessories Inlet/Outlet connections (threaded or flanged). Temperature Gauge & Pressure Gauge. Air Release Valve / Safety Valve. Stand Support or Skid Base Frame. Optional: Coils/Heat Exchangers for indirect heating. Operating Parameters Design Pressure: 6–10 bar (higher pressure on request). Max Temperature: 95 °C. Setpoint Range: Adjustable depending on heating source. Applications Domestic hot water storage. Central heating buffer tanks. Commercial & industrial hot water supply. Integration with heat pump, solar thermal, and boiler systems.
